Features
• Light vehicle hydraulic 2-post lift
• Padded overhead safety shut-off bar for raised vehicle protection
• Symmetrical, 3-stage lifting arms for long wheelbase and wide vehicle coverage
Lift

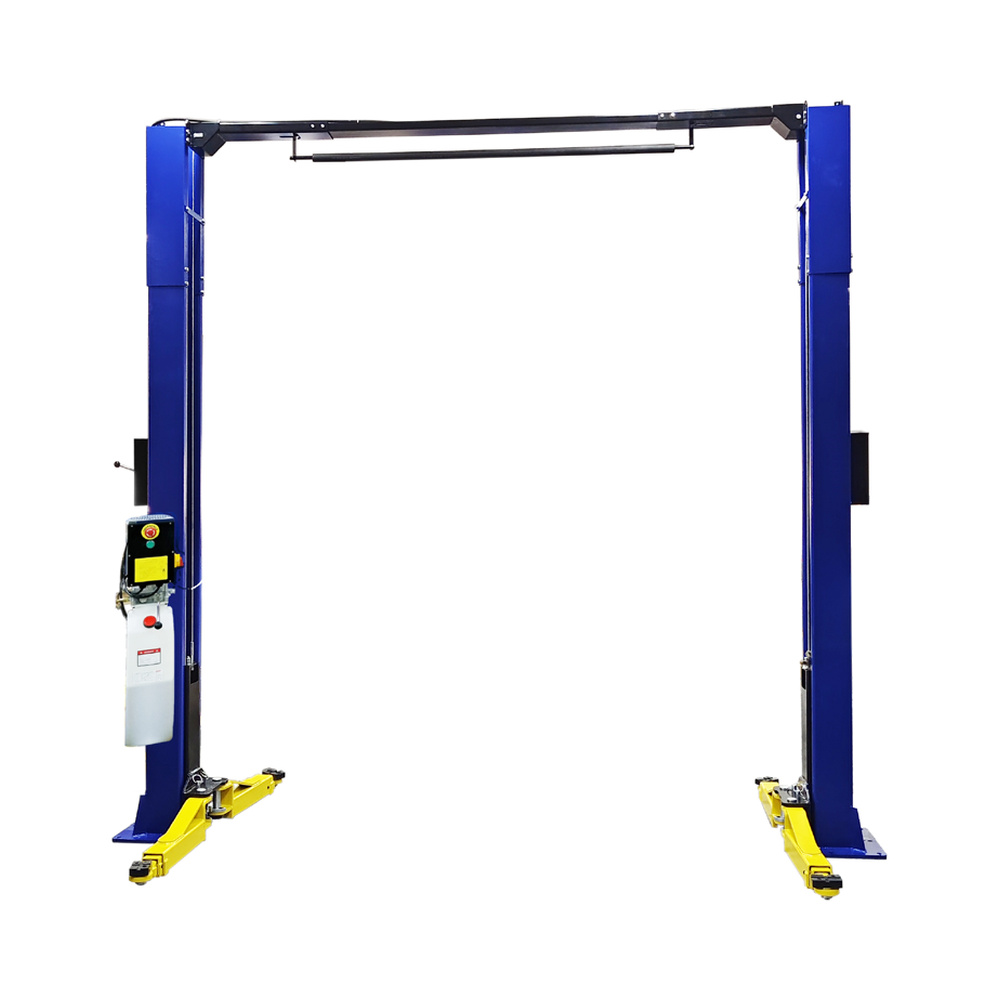

2 POST LIFT – 4CF-LP 4T
ITEM
EELRBP766LP
QUANTITY
The Blue-Point 2 POST LIFT – 4CF-LP 4T is a professional professional workshop equipment for safe and efficient workshop servicing, featuring light vehicle hydraulic 2-post lift
Specifications
| Specification | Details |
|---|---|
| Lifting Capacity (kg) | 4,000 |
| Capacity Per Arm (kg) | 1,000 |
| Overall Width (mm) | 3,650 |
| Width Between Columns (mm) | 3,000 |
| Drive-through Width (mm) | 2,691 |
| Overall Height (mm) | 3,676 |
| Under Bar Clearance (mm) | 3,464 |
| Min Lift Pad Height (mm) | 98 |
| Max Lift Pad Height (mm) | 128 |
| Arms Extraction (mm) | 1,320 |
| Arms Retracted (mm) | 720 |
| Max Lifting Height | 1,860 |
| Lift Time | 40 - 60 seconds |
| Lower Time | 25 - 70 seconds |
| Hydraulic Oil Specification | ISO 32 / 46 10WT |
| Hydraulic Oil Capacity (L) | 10 |
| Max Operating Pressure (MPa) | 21 |
| Power Supply | 200-240 VAC1, 50/60Hz; 380-415 VAC3, 50Hz |
| Recommended Accessories | Height Extension Adaptors 50, 100mm |
