Lift
ALIGNMENT LIFT – LPSAL 4T 4.5M
Share product:
Zoom
ITEM
EELRBP750LP
QUANTITY

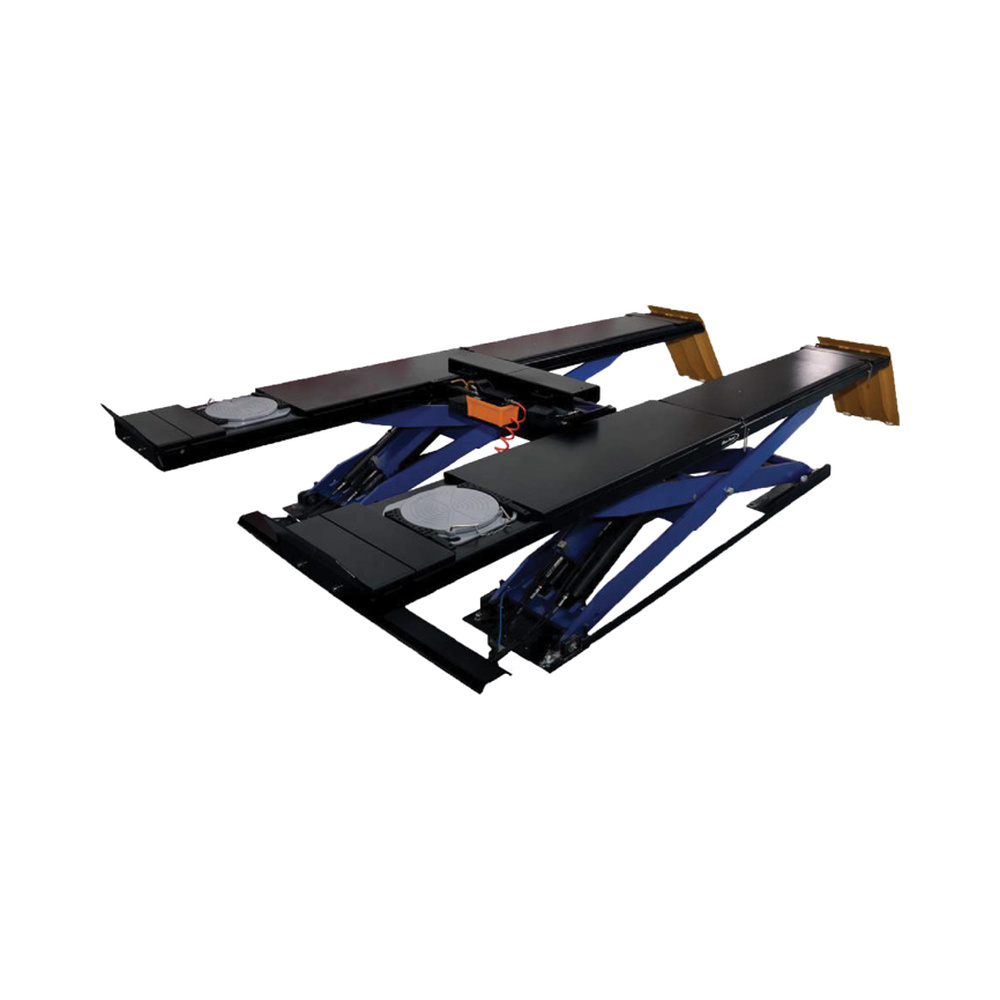

The Blue-Point ALIGNMENT LIFT – LPSAL 4T 4.5M is a professional professional workshop equipment for safe and efficient workshop servicing, featuring low-profile vehicle compatibility

ENQUIRE
Features
• Low-profile vehicle compatibility • Low installation height designed for above-ground setup, reducing installation costs • Spacious platform and length to accommodate a wide range of vehicles.
Specifications
SpecificationDetails
Runway Length (mm)4,500
Overall Length (mm)4,980
Max. Capacity (kg)3,500
Overall Width (mm)2,160
Runway Width (mm)550
Runway Initial Height (mm)220
Lift / Lower Time40 - 60 seconds
Working Temperature5 - 40 °C
Hydraulic Oil Specification456
Hydraulic Oil Capacity (L)15
Max Operating Pressure (psi)3,045
Air Supply Requirements90 to 140 psi @ 5-10CFM
Power Supply220V 1Ph 50/60Hz ; 380V 3Ph 50Hz
Optional AccessoriesJBHL001 - 2T Roller Jack with pneumatic pump; EAKBP750TT - Low-profile Turntable 30mm (include 1 turntable and 2 paddles)
