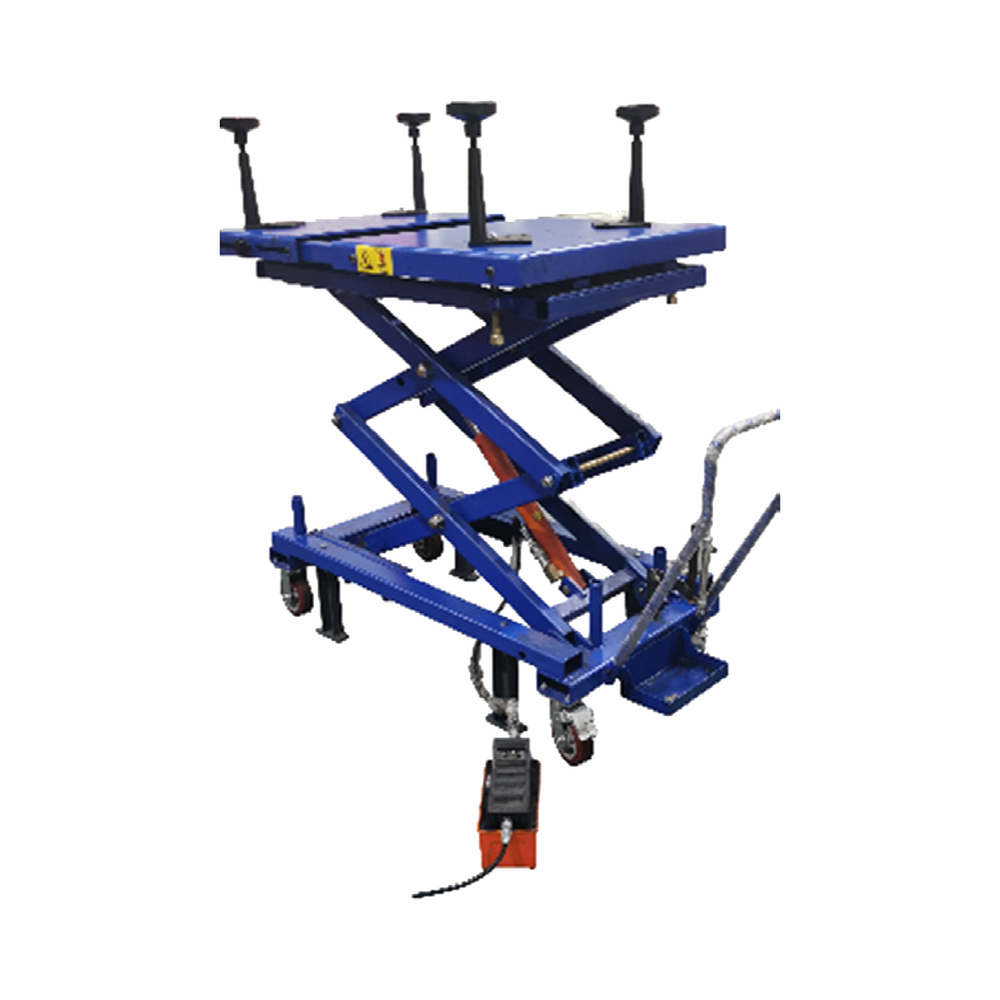

The Blue-Point EV BATTERY LIFT 1T is a professional professional workshop equipment for safe and efficient workshop servicing, featuring electro-pneumatic lift table for removal of battery packs of electric vehicle.
| Specification | Details |
|---|---|
| Standard Loading Capacity (kg) | 1,000 |
| Max Lifting Height (mm) | 1,850 |
| Min Height (mm) | 585 |
| Working Table Size (mm) | 1,200 - 1,350 x 800 |
| Handle Bracket Height (mm) | 880 |
| Y-axis Lean Angle | 3° |
| Wheel Diameter (mm) | 150 |
| Gross Weight (kg) | 360 |
| Driving Method | Air Hydraulic Pump |
| Air Pressure (MPa) | 0.6 - 0.8 |
| Standard Accessories | 6 x Height Adaptors/Pads; 1 x Rubber Mat |
