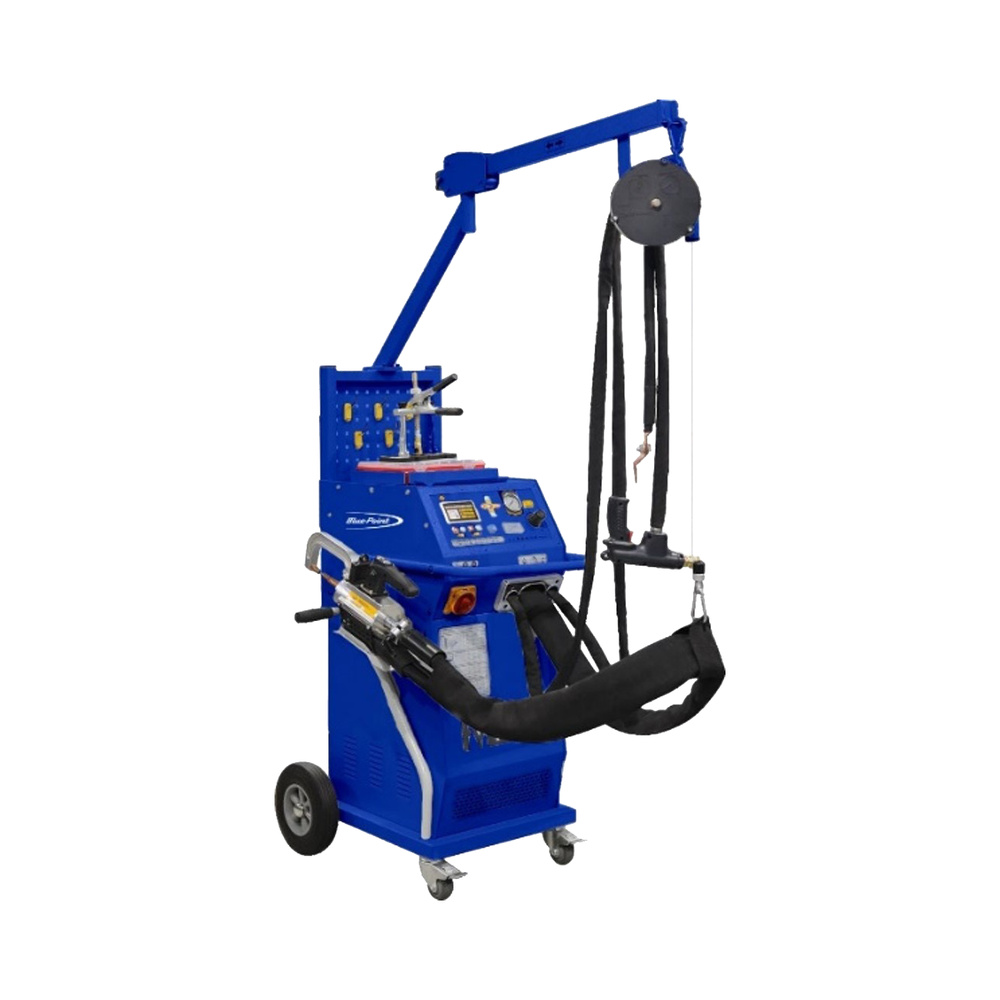

The Blue-Point SPOT WELDER WITH C-TYPE GUN is a professional professional workshop equipment for safe and efficient workshop servicing, featuring advanced safety features: automatic voltage monitoring and overheat protection
| Specification | Details |
|---|---|
| Power | 380V 50/60 Hz ±15% 23KVA |
| Rated Input Current (A) | 65 |
| Max Current (A) | 13,000 |
| Max Welding Thickness of C-gun (mm) | 3.0 + 3.0 |
| Max Welding Thickness of Single Side Gun (mm) | 0.5 + 3.0 |
| Output Voltage (V) | 1 - 13 |
| Size of Welding Spot (mm) | 4 - 9 |
| Operation Way | Electronic Timer Continuously |
| Protection Grade | IP21 |
| Air Supply Pressure (kg) | 4 - 8 |
| Welding Timing Range | 0 - 9990 ms; Pulsed |
| Packaging Size (cm) | 74 x 61 x 180 |
| Weight (kg) | 168 |
| Cable Length of C-gun (m) | 2.5 + 2.3 |
| Cable Length of Single Side Welding Gun (m) | 3 |
| Cable Length of Power Cable (m) | 7 |
| Optional Accessories Balancer | BLPRSW13000A-B |
| Optional Accessories C-Clamp | BLPRSW13000A-C1 (80x160mm); BLPRSW13000A-C2 (250x180mm); BLPRSW13000A-C3 (400x180mm); BLPRSW13000A-C4 (480x180mm); BLPRSW13000A-C5 (520x180mm) |
