Lift
ALIGNMENT LIFT – SOSAL 4T 4.5M
Share product:
Zoom
ITEM
EELRBP760APC
QUANTITY

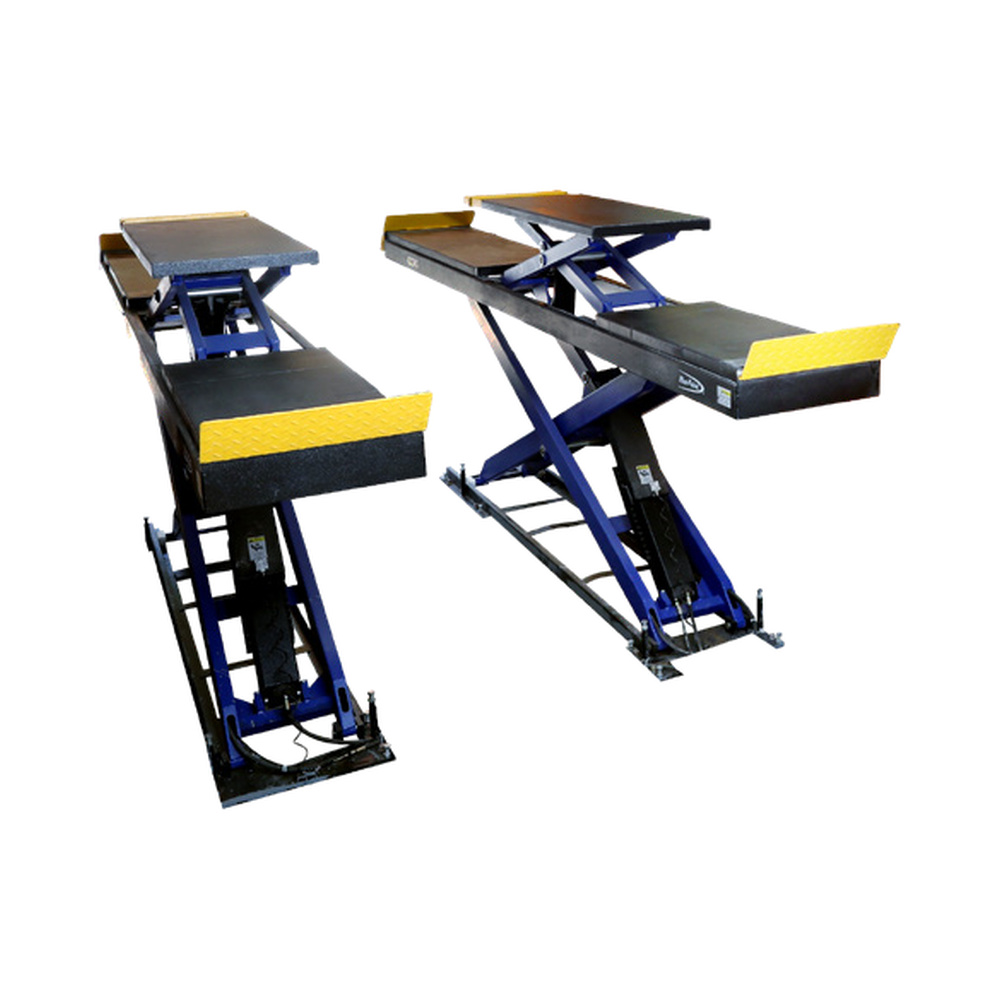

The Blue-Point ALIGNMENT LIFT – SOSAL 4T 4.5M is a professional professional workshop equipment for safe and efficient workshop servicing, featuring scissor-on-scissor design for fast alignment of saloon cars and some SUVs

ENQUIRE
Features
• Scissor-on-scissor design for fast alignment of saloon cars and some SUVs • Designed for long vehicle alignment process • Extendable platform for wheel-free lifting
Specifications
SpecificationDetails
Max Capacity (kg)4,000
Max Length, Flush Mount (mm)4,825
Primary Runway Length (mm)4,500
Second Runway Length (mm)1,500 - 1,700
Overall Width (mm)2,120
Width Between Runway (mm)920
Primary Scissor Lift Height (mm)1,850
Second Scissor Lift Height (mm)450
Primary Lift / Lower Time40 - 60 seconds
Runway Initial Height (mm)1,380
Hydraulic Oil SpecificationISO 32/46 10WT
Hydraulic Oil Capacity (L)10
Max Operating Pressure (MPa)26
Air Supply Requirements90 - 140 psi @5 - 10CFM
Installation RecommendationFlush Mount
Power Supply200-240 VAC1, 50/60Hz 380-415 VAC3, 50Hz
